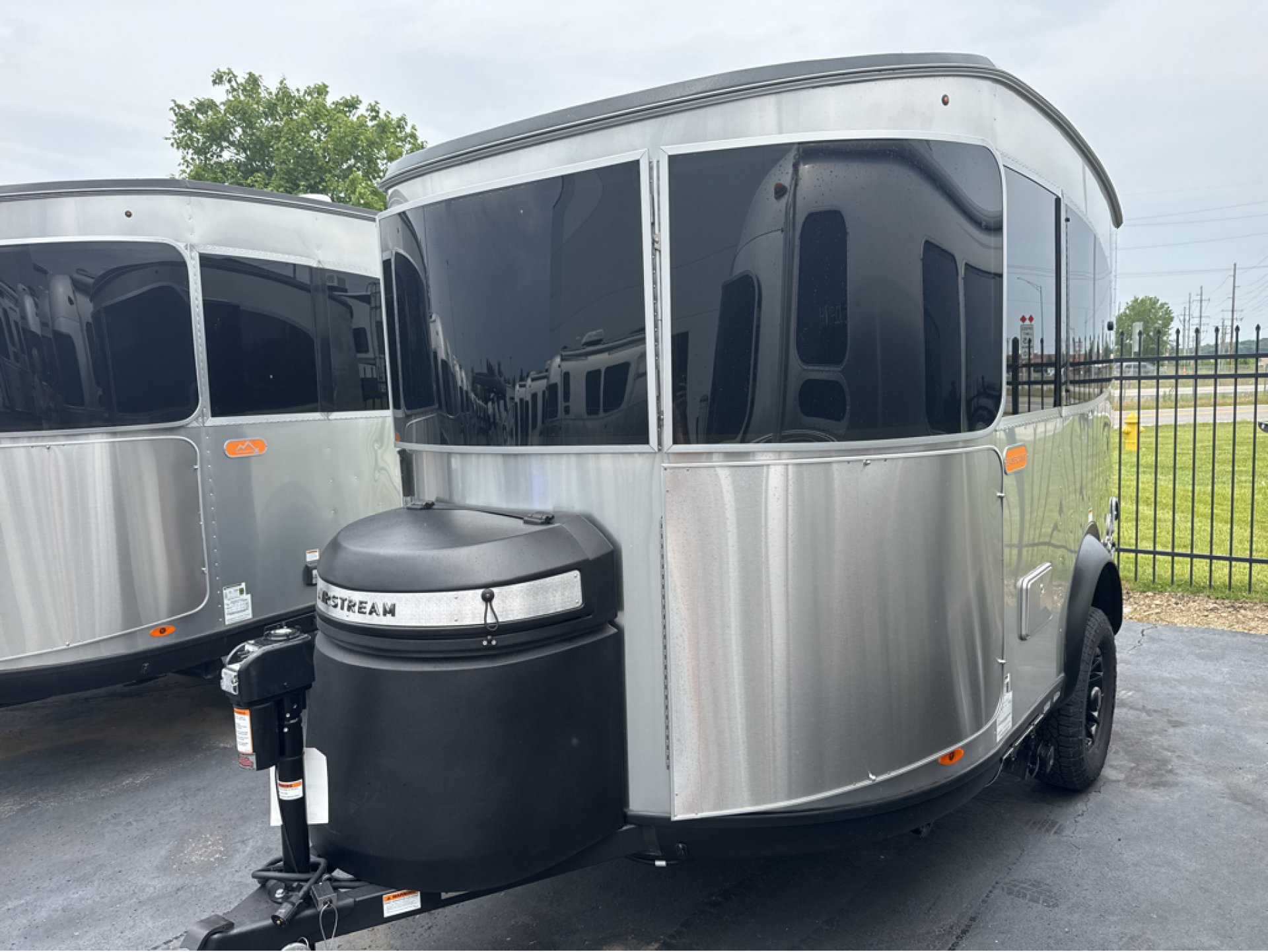

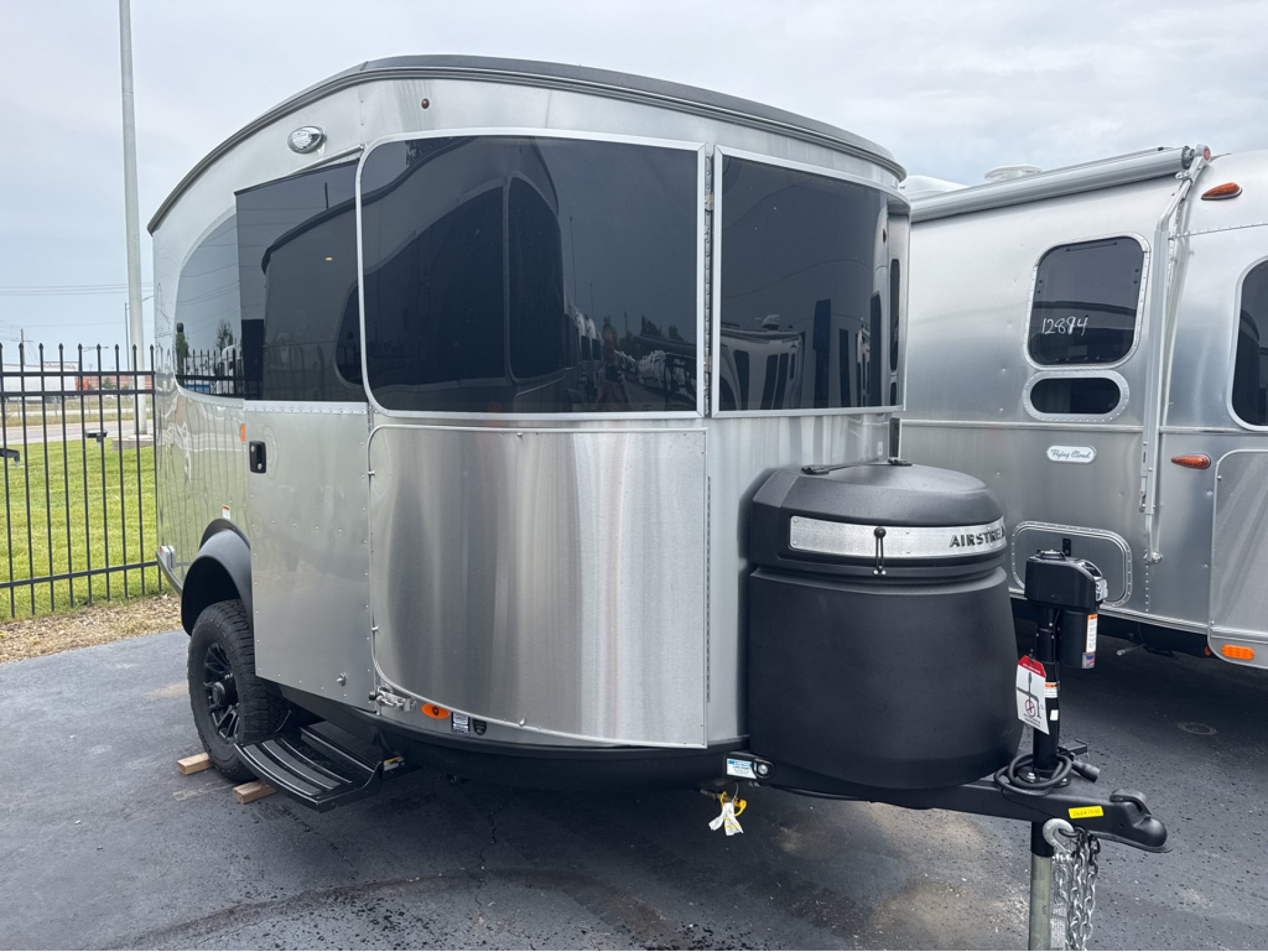

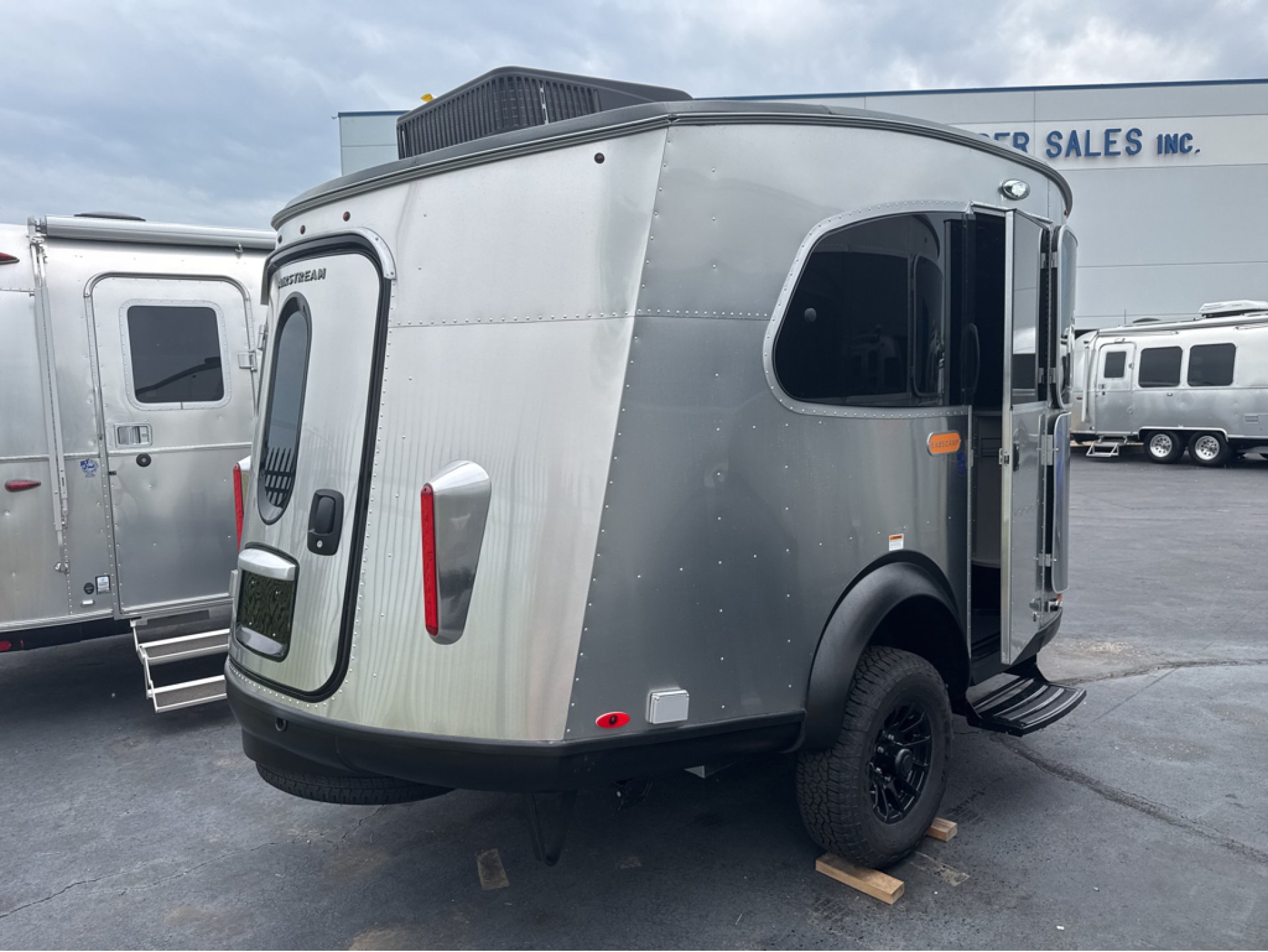

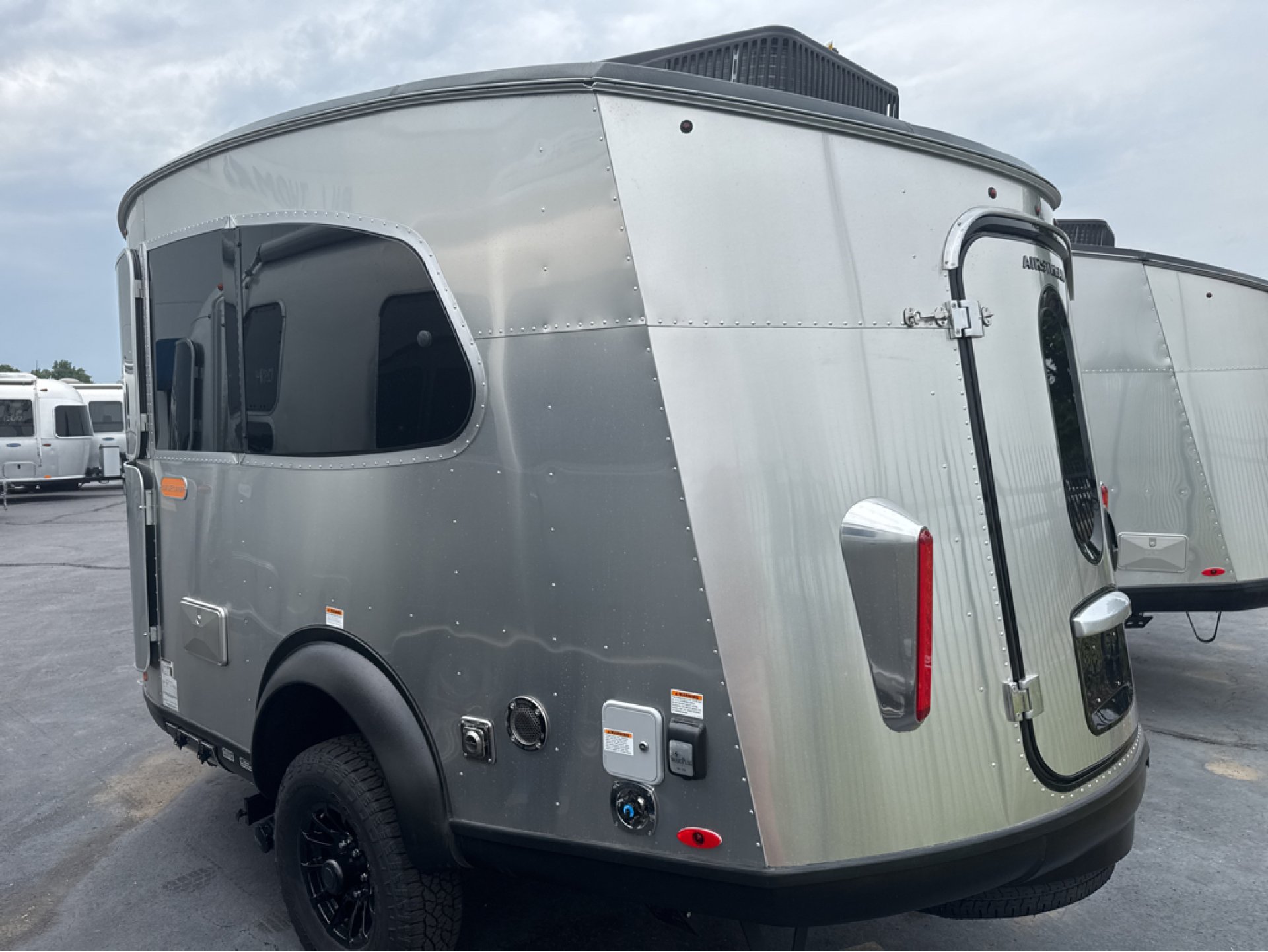

2025 AIRSTREAM BASECAMP 16X

Specifications and Features:

• Exterior Length: 16 ft. 2 in.
• Exterior Width: 7 ft.
• Interior Width: 6 ft. 4.5 in.
• Exterior Height with A/C: 9 ft.
• Interior Height with A/C (Entry Area): 6 ft. 3.5 in.
• Maximum Trailer Capacity (GVWR): 3,500 lbs.
• Unit Base Weight with LP & Batteries: 2,700 lbs.
• Hitch Weight with LP & Batteries: 450 lbs.
• Net Carrying Capacity: 800 lbs.
• Fresh Water Tank Capacity: 21 gal.
• Gray Water Tank Capacity: 24 gal.
• Waste Water Tank Capacity: 24 gal.
• Ducted Furnace: 12,000 BTU
• Sleeping Capacity: Up to 2

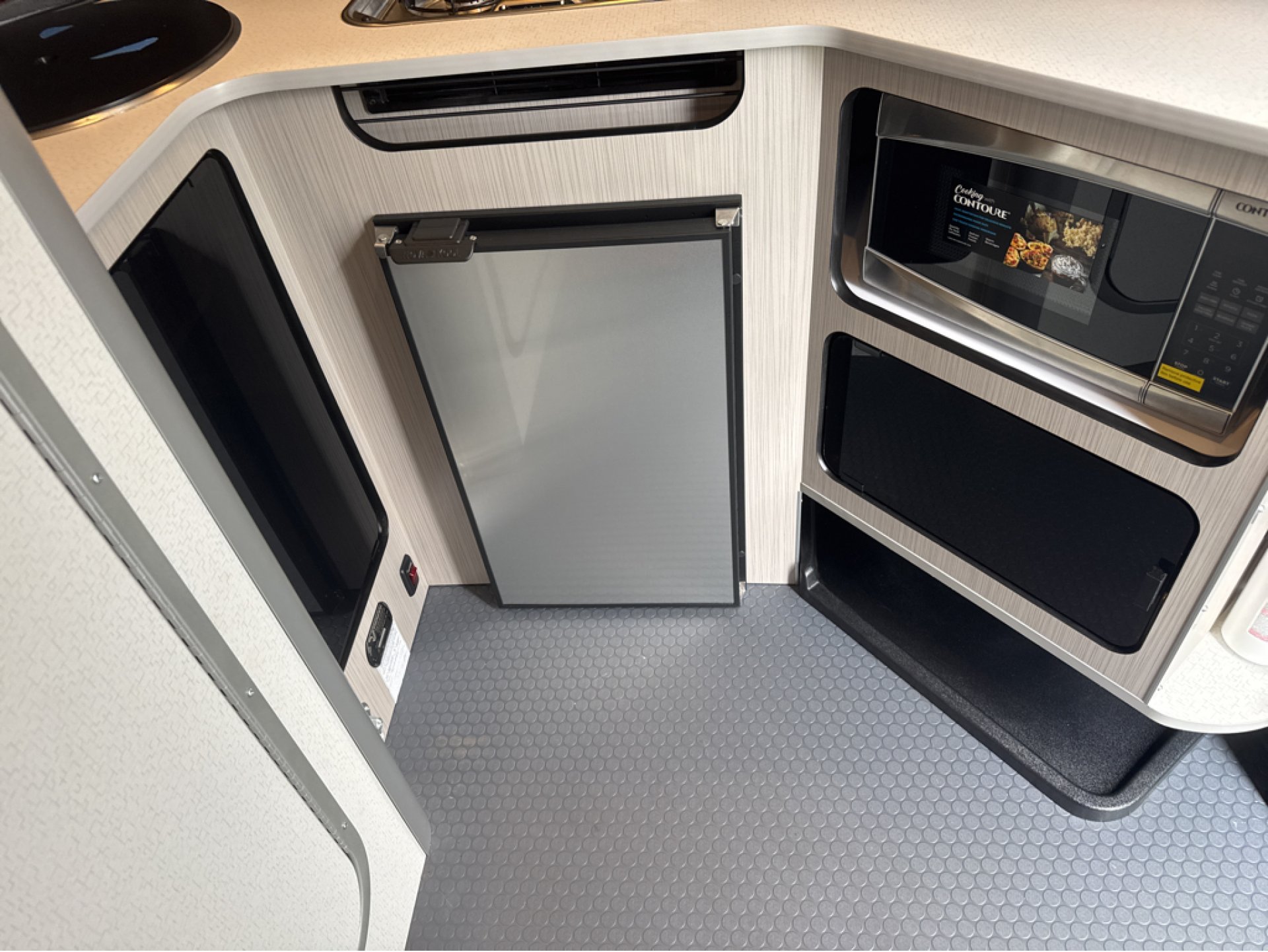

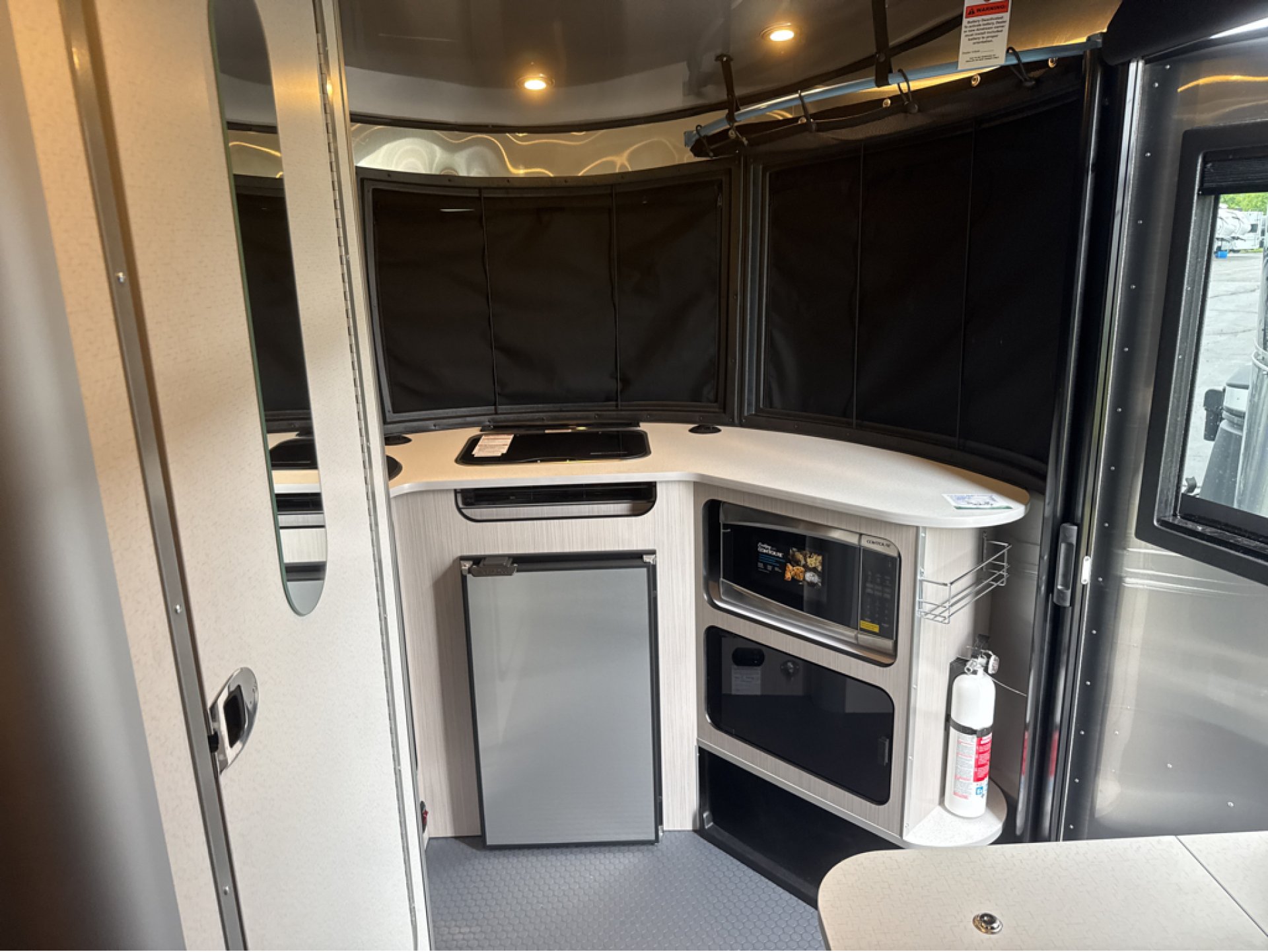

• Refrigerator with Freezer (12v Electric): 3.1 cu. ft.
• LP Gas Stove (Burners): 2
• Interior Windows & Skylights: 8

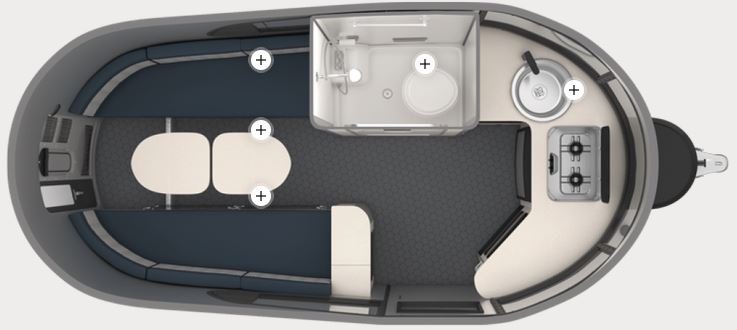

• Bed Configuration: Seating (24 in. x 76 in.), Half Bed (38 in. x 76 in.), Complete Bed (76 in. x 76 in.)
• 30 AMP Service Single A/C with Heat Strip (BTU): Optional 9,200
• Microwave: Optional (0.7 cu. ft.)

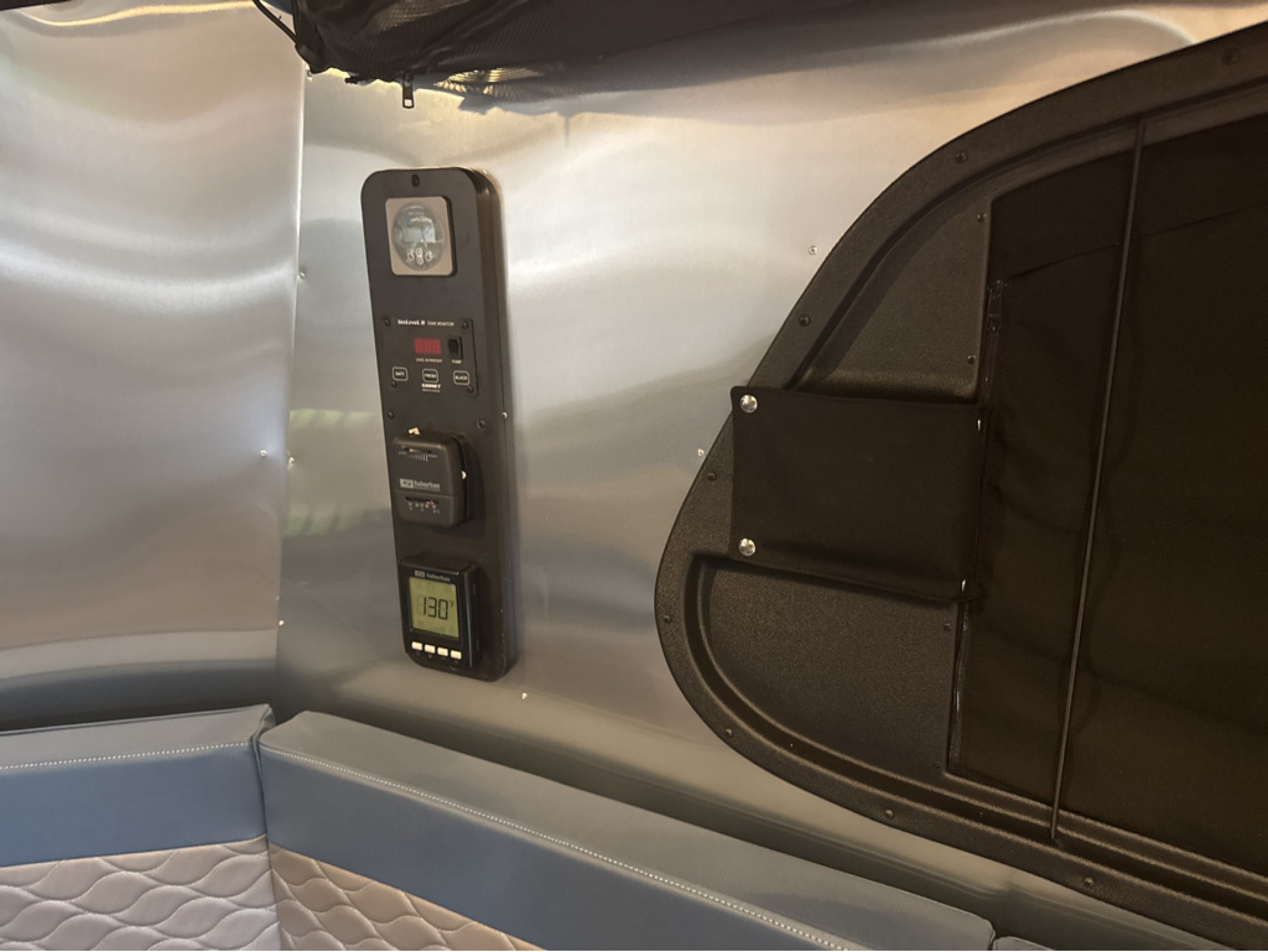

• Solar Charging System with Interior Monitor: Optional 200W
• Internal Heated Lithium Batteries with Remote Monitoring (only available with solar options): Optional 200Ah
• X-Package: Optional
• 12v Tank Heaters (In Addition To Heated Underbelly): Standard
• 2 Heavy Duty Stabilizer Jacks: Standard
• 3” Lift Kit: Standard

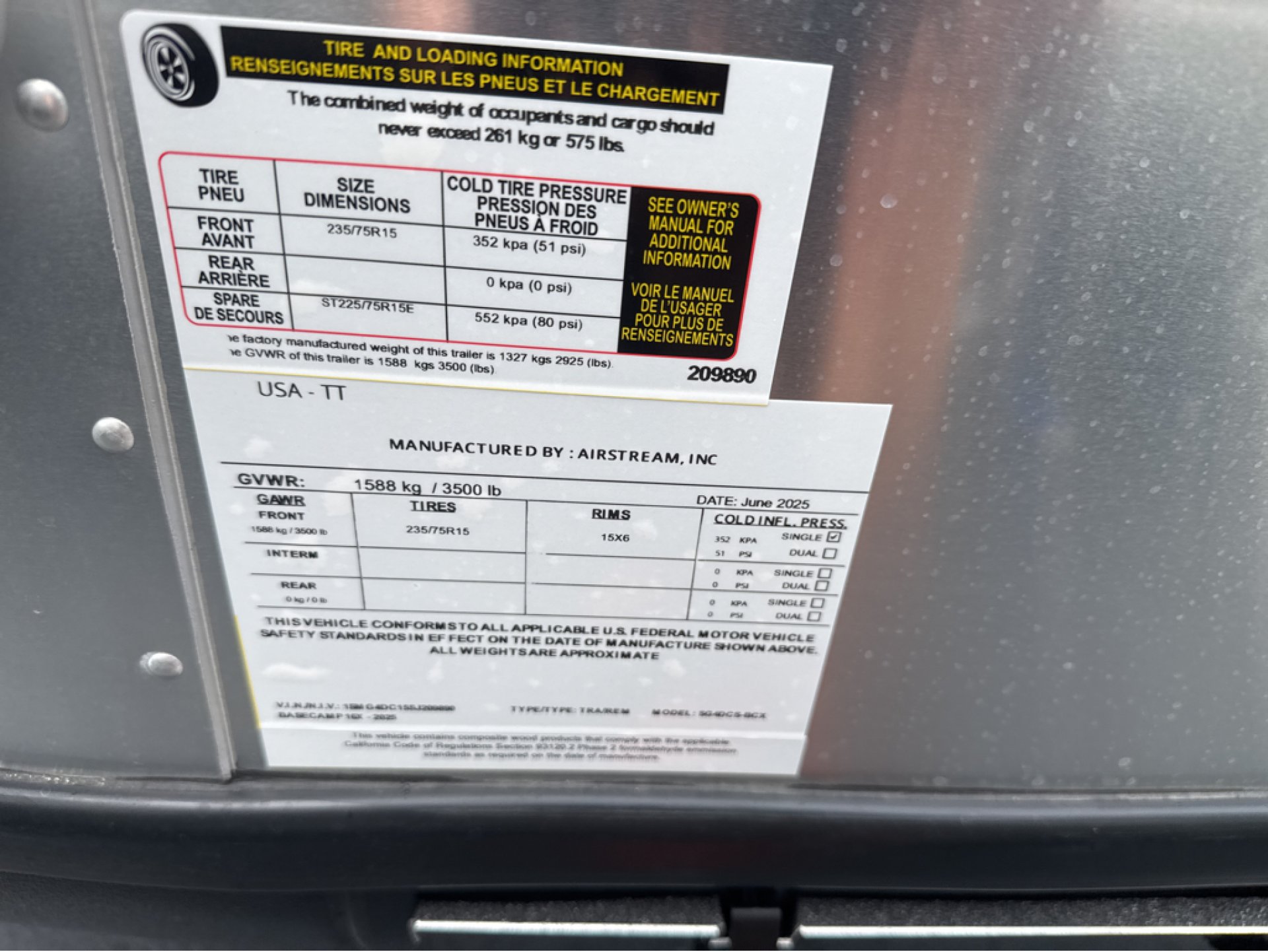

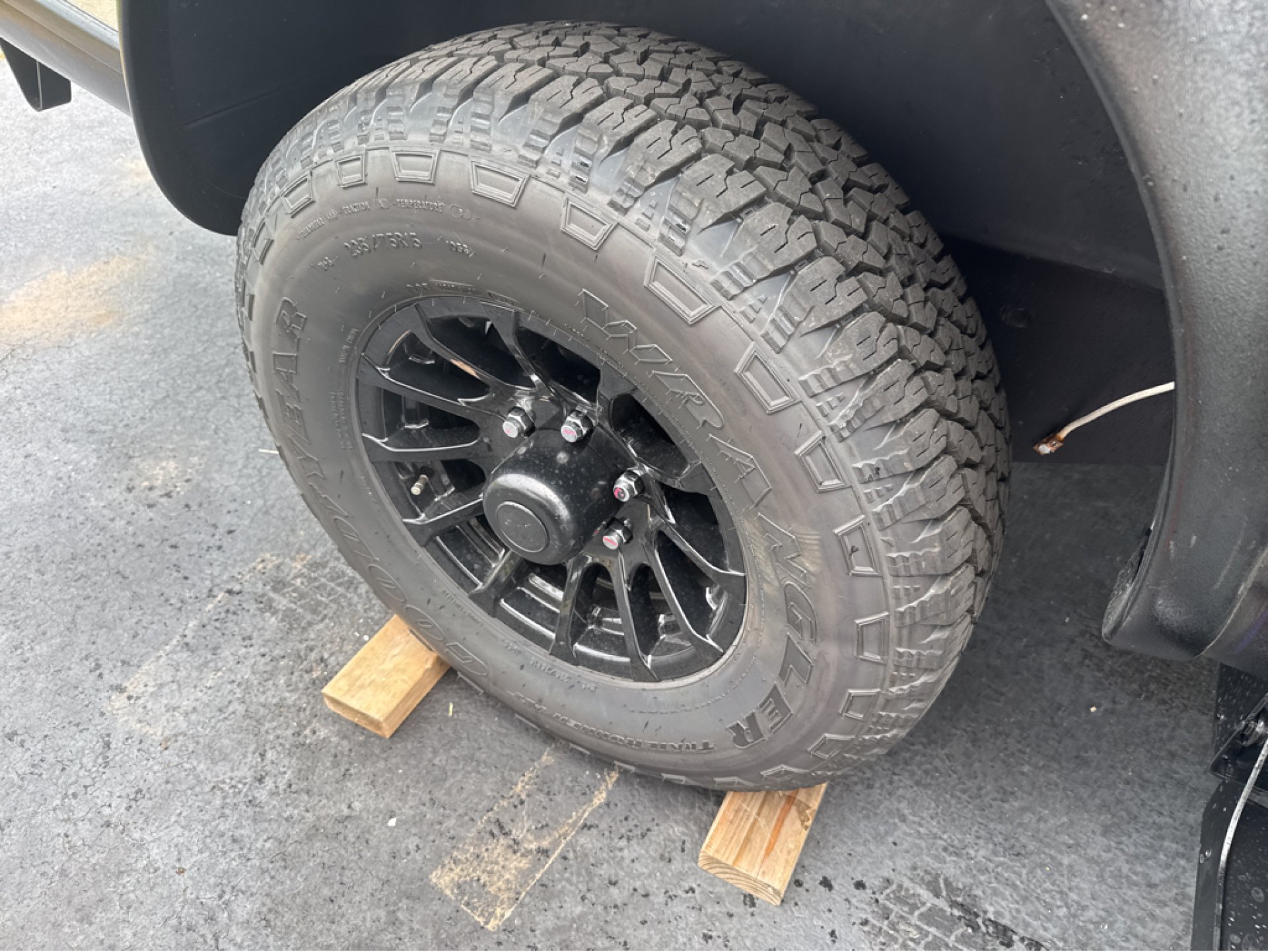

• Goodyear® Wrangler Trailrunner ST235/75R15E Tires, Balanced: Standard
• Aluminum Entry Door Handle: Standard
• Cast Aluminum LED Tail Lights: Standard
• City Water Inlet with Water Pressure Regulator: Standard
• Custom Aluminum Handcrafted Entry Door with Window: Standard

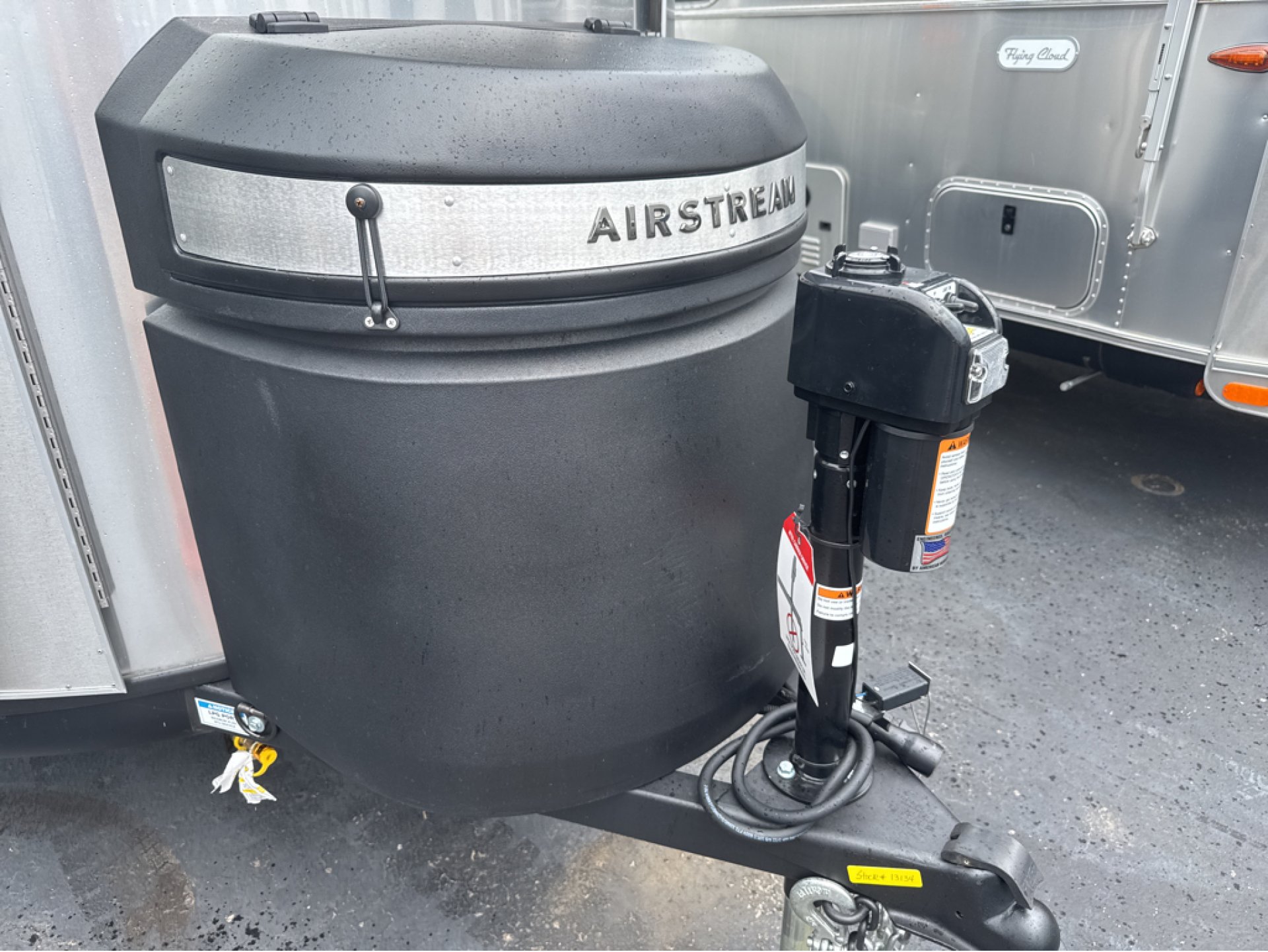

• Custom Molded Plastic LP Cover with Storage Tray: Standard
• Dedicated Sewer Hose Storage: Standard
• Enclosed Aluminum Insulated Heated Underbelly: Standard
• Exterior LP Gas Low Pressure Grill Connection: Standard
• Exterior Shower with Hot & Cold Water: Standard
• Fluorocarbon Treated UV Protected Aluminum Exterior: Standard
• Full Size Spare Tire: Standard
• Hand Crafted Welded Extruded Aluminum Window Frames: Standard
• Internally Routed A/C Condensation Drain Line to Wheel Well: Standard
• LED Entrance Light: Standard
• LED Tank Service Light: Standard
• License Plate Bracket with LED Light: Standard
• Lockable Fresh Water Tank Inlet: Standard
• LP (2 – 20 lb. Steel Tanks) with auto 2-stage regulator: Standard
• Nev-R-Adjust® Brakes: Standard
• Powered Hitch Jack with Light: Standard
• Seamless Composite Flooring: Standard
• Semi-Monocoque Aluminum Superstructure: Standard

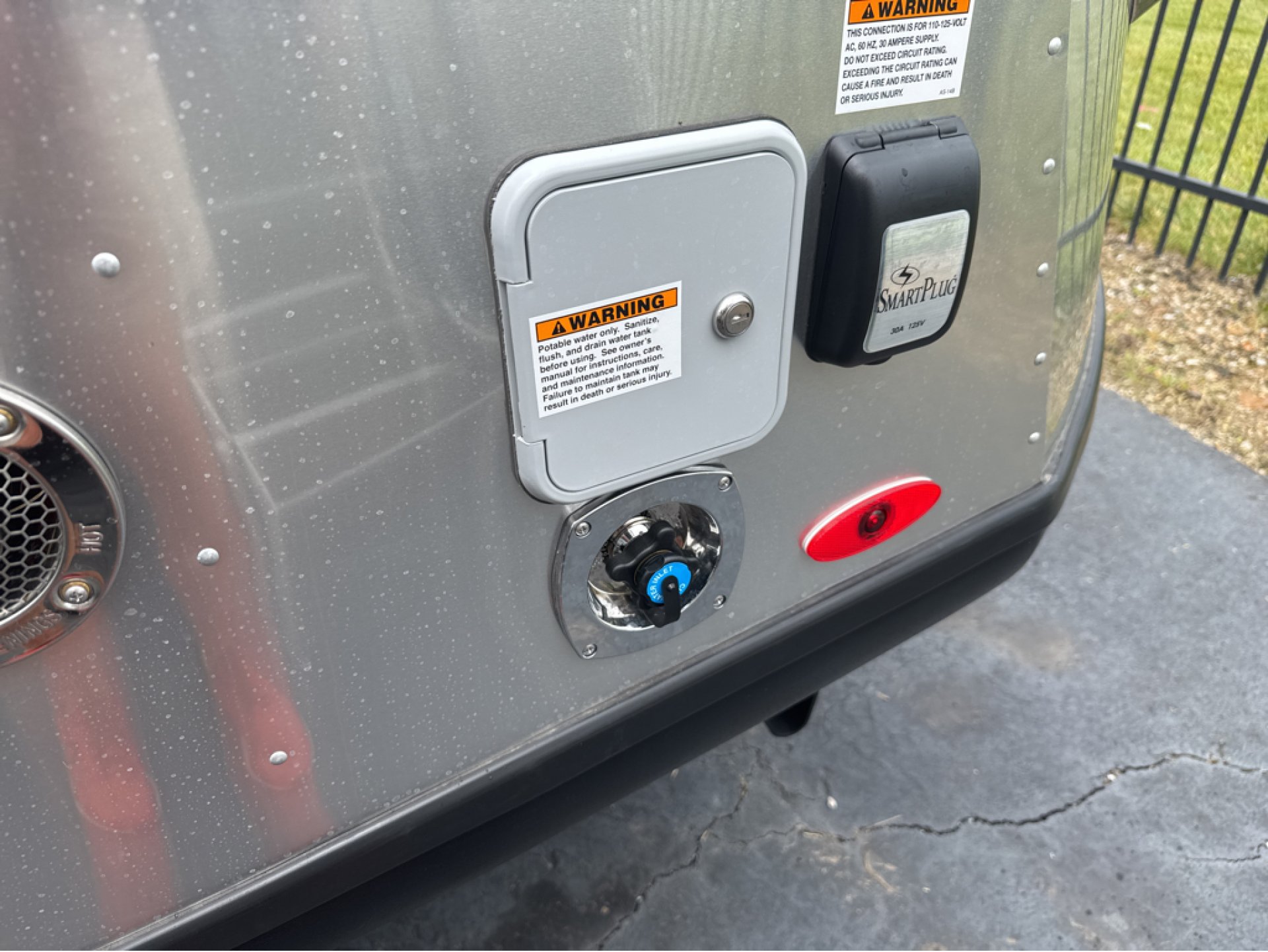

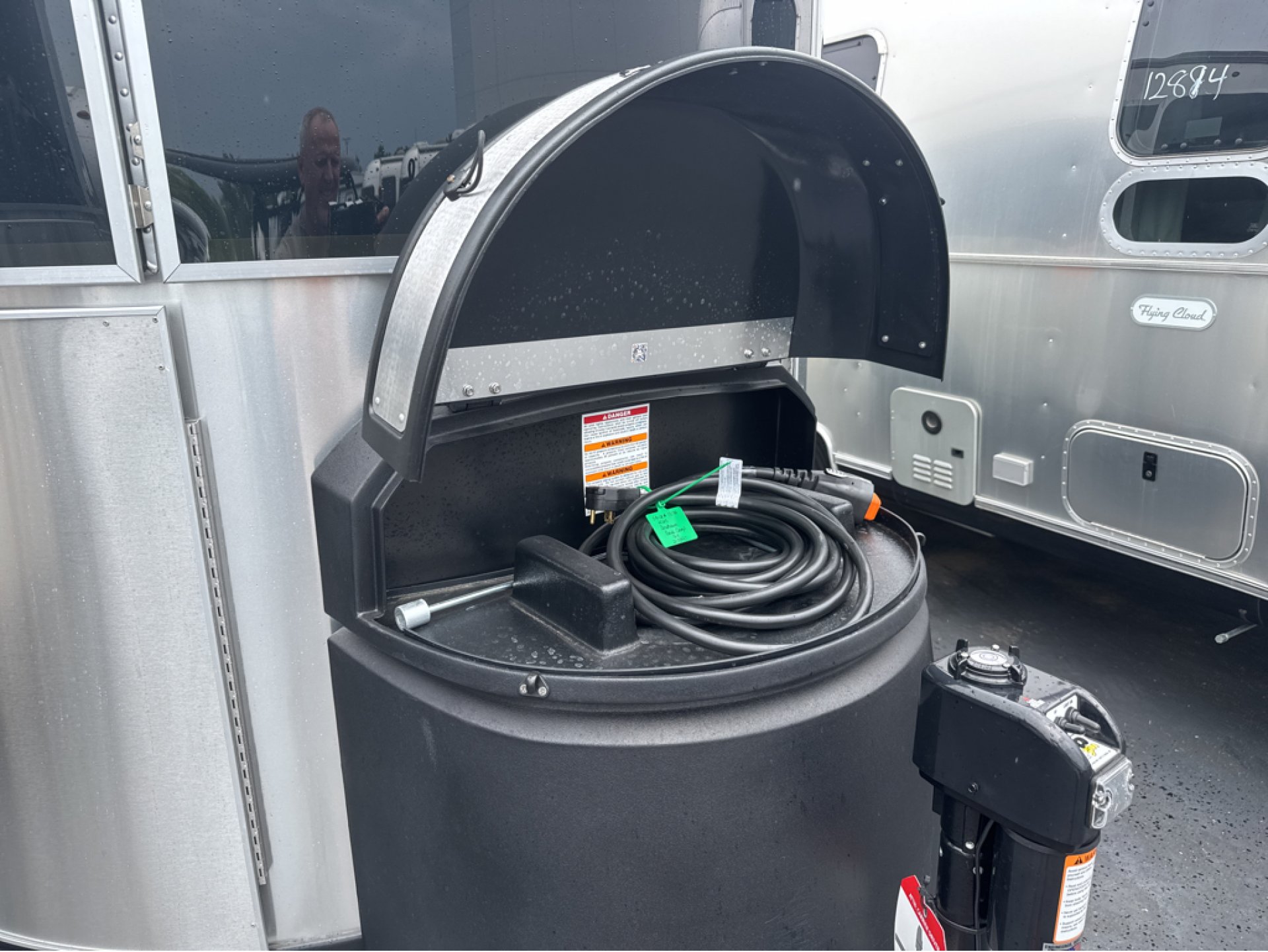

• SmartPlug® 30 Amp Shore Power Inlet with Cord: Standard
• Solar Pre-wire (3 Rooftop & 1 Front Access Points): Standard

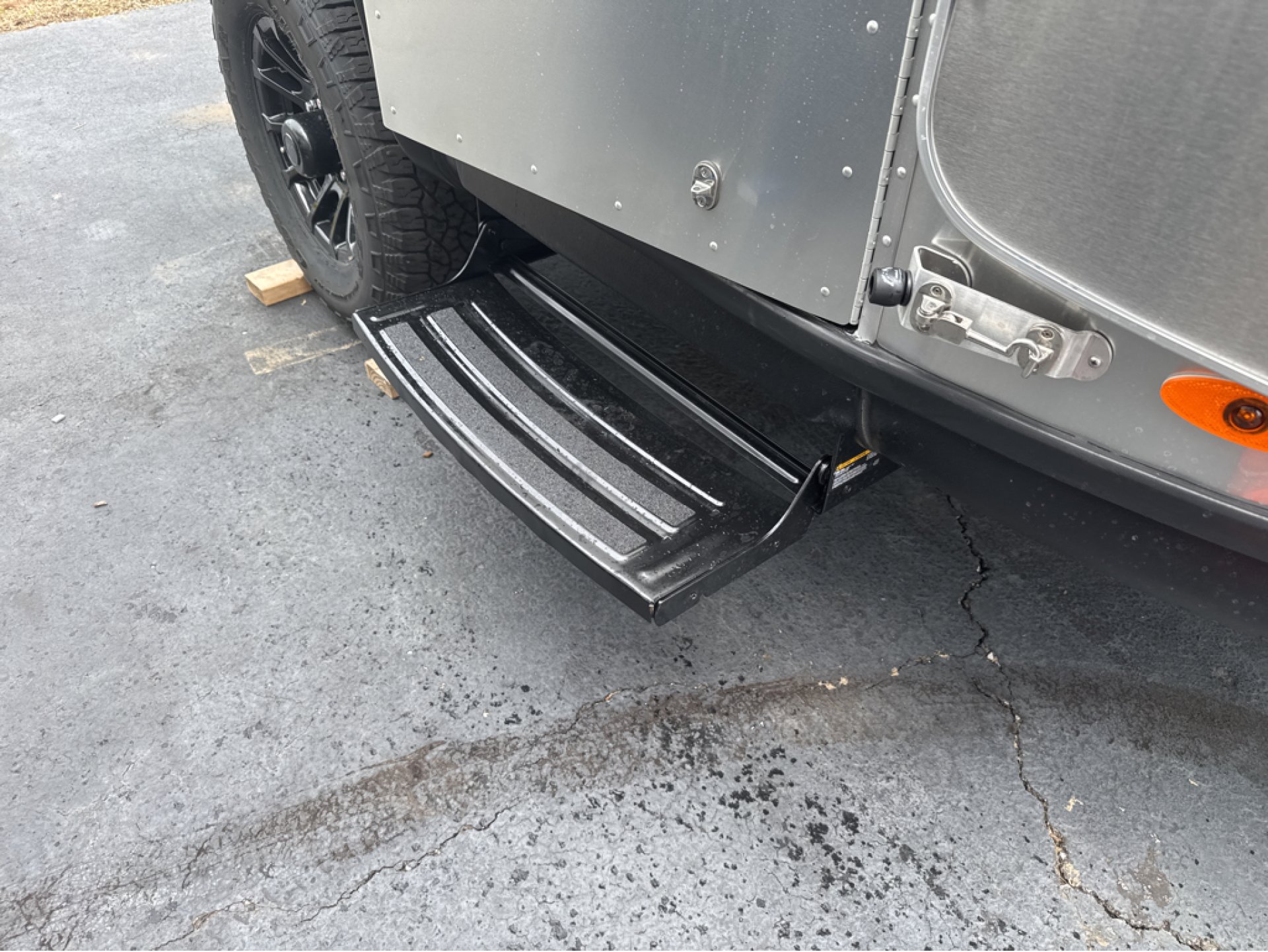

• Steel Entry Step: Standard
• Stylized Aluminum Wheels: Standard
• Tempered Tinted Windows with Rear Venting Windows: Standard
• Thermal Barrier Protection Between Interior and Exterior: Standard

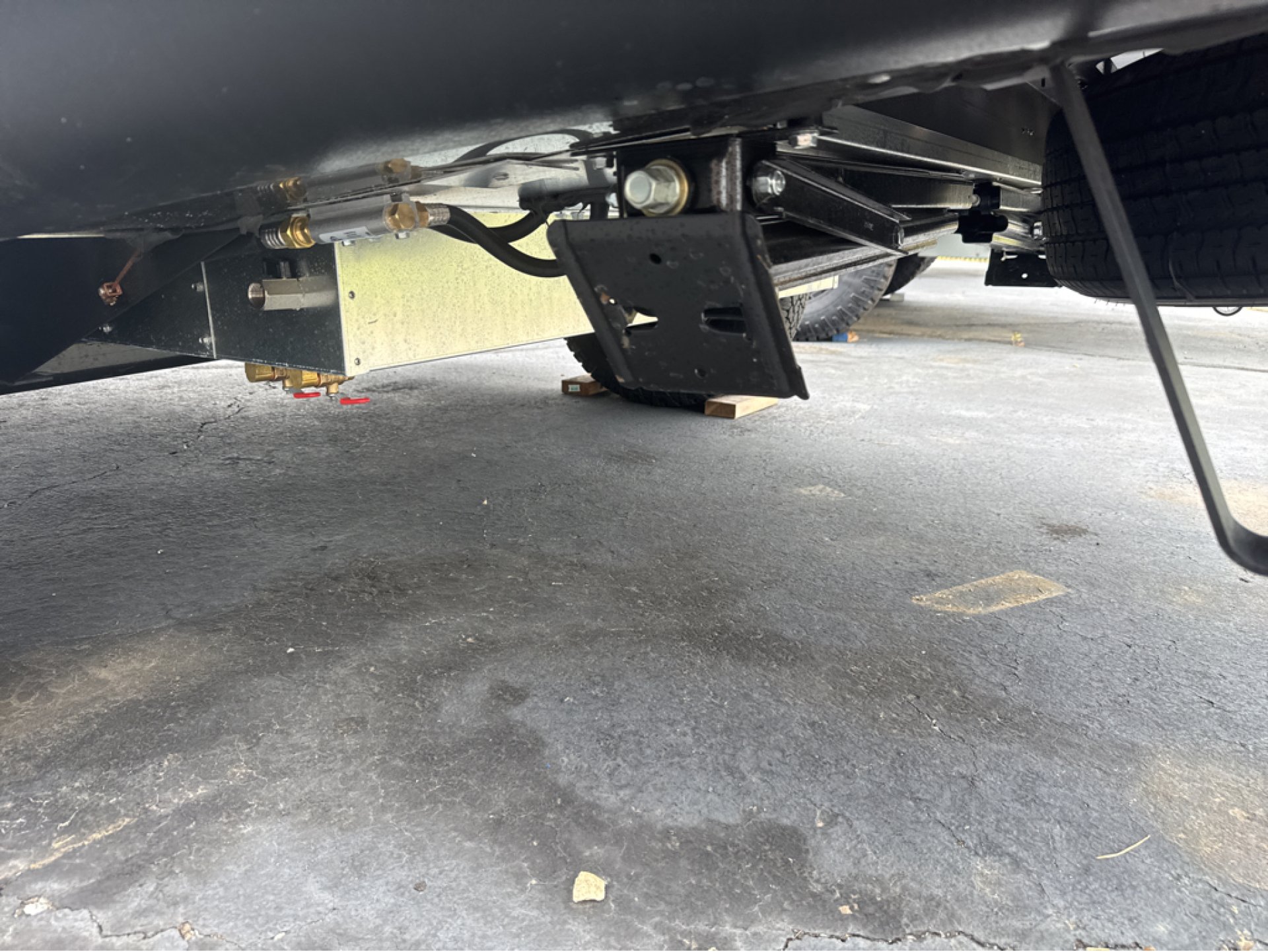

• Torsion Axle with Shock Absorbers: Standard
• Unique Front Door Key with Heavy Duty Deadbolt: Standard
• Complete Aluminum Interior Walls and Ceiling: Standard
• LED Interior Lighting: Standard
• Multi-Speed Roof Exhaust Fan: Standard
• Overhead Storage: Standard
• Panoramic Front Windows with Blackout Shades: Standard
• Premium Environmental Friendly Insulation: Standard
• Probeless Tank Monitoring System: Standard
• Seamless Vinyl Flooring: Standard
• Sliding Screen Front Door and Zippered Rear Screen: Standard
• Tankless On Demand LP Water Heater: Standard
• Aluminum Aircraft L-Track Storage System (Floor): Standard
• Coat & Key Hooks: Standard

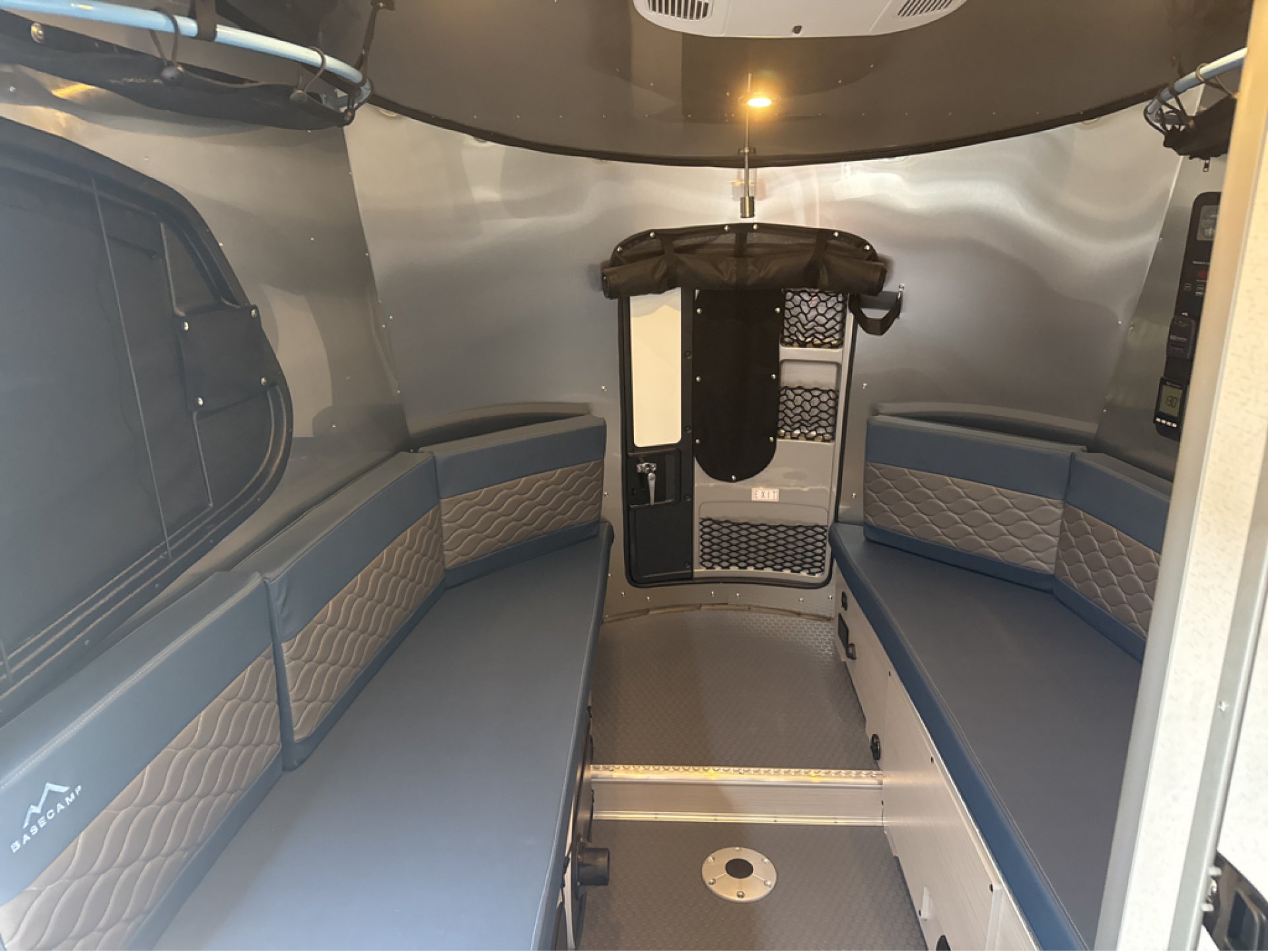

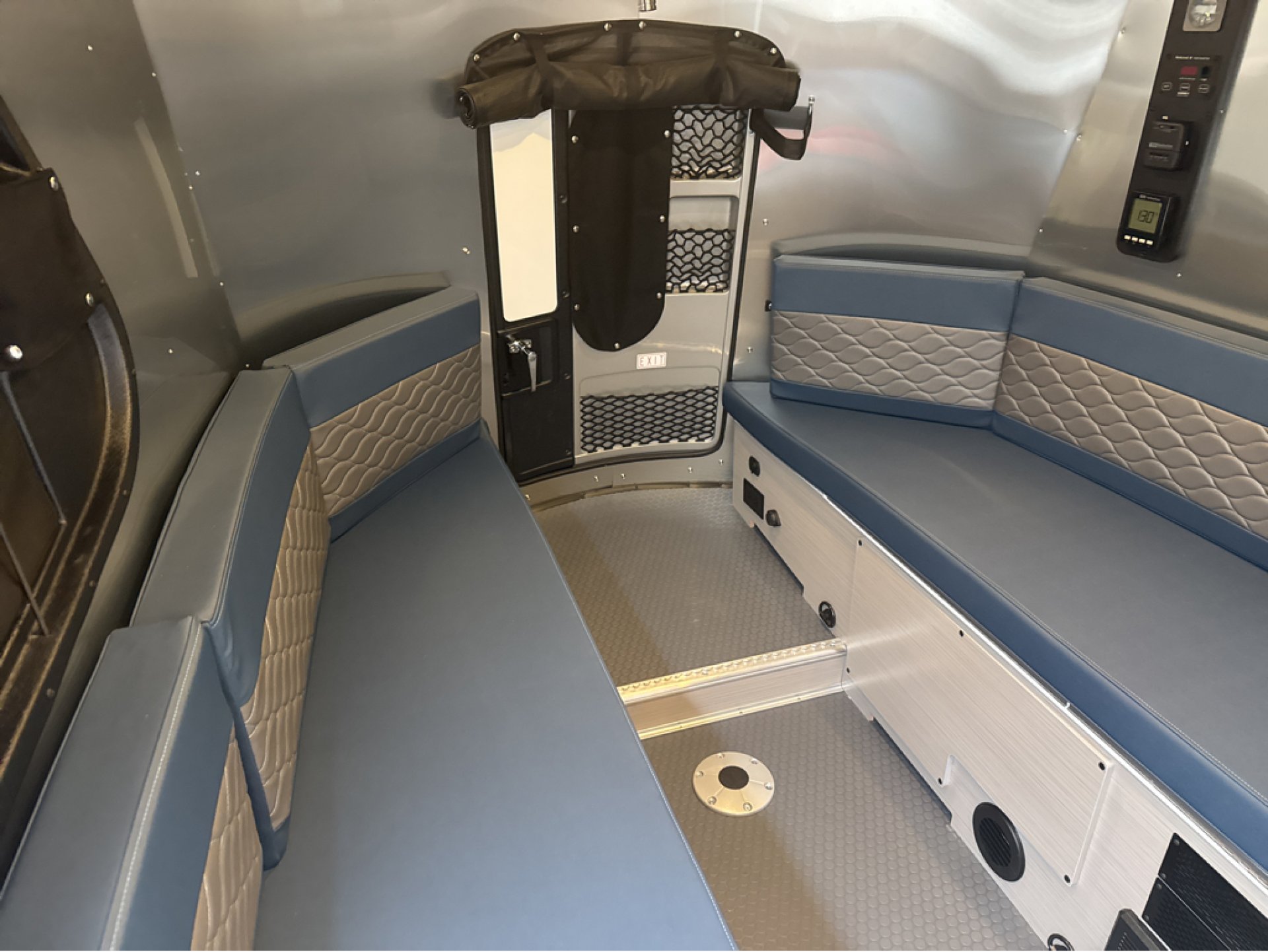

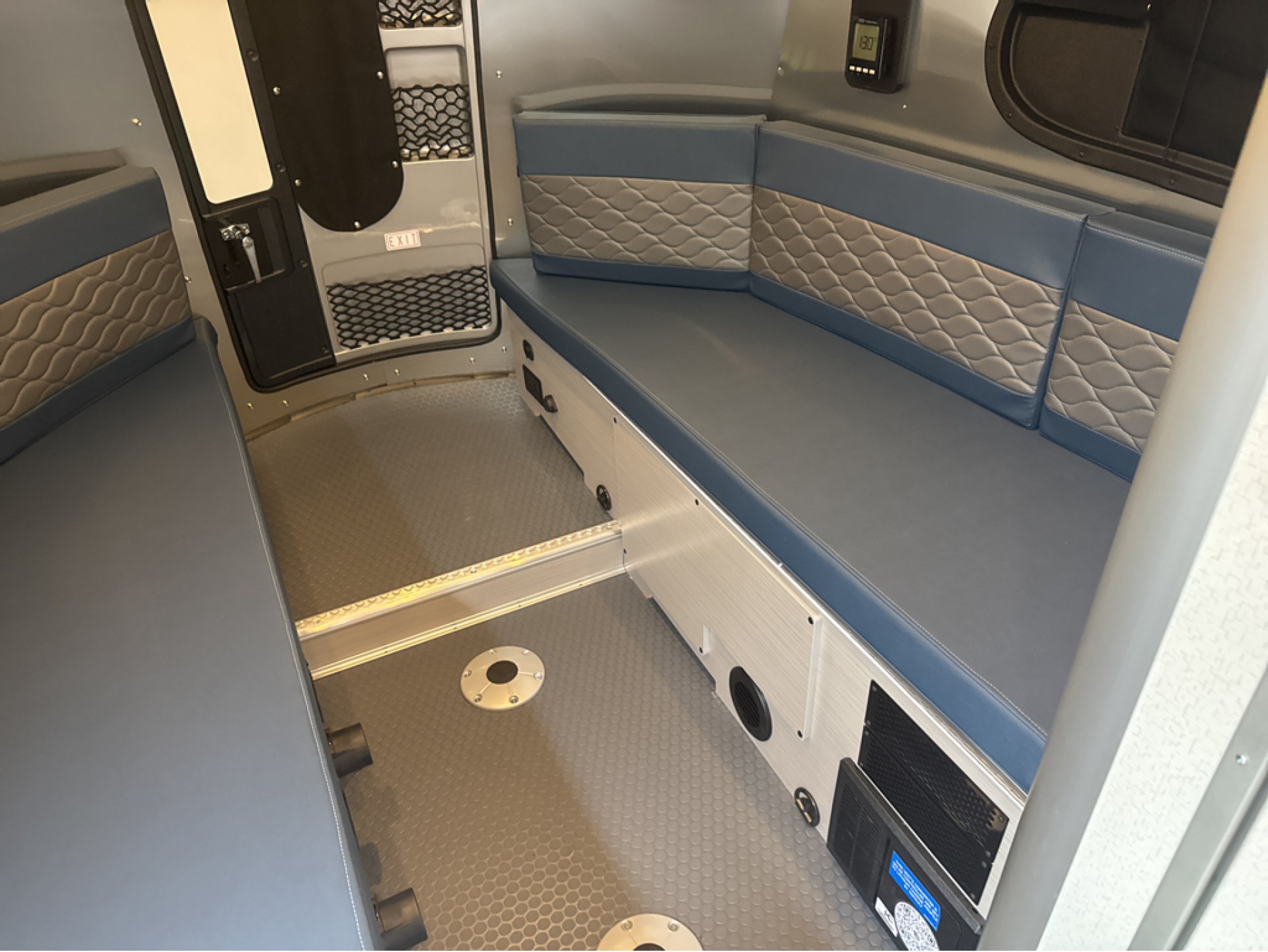

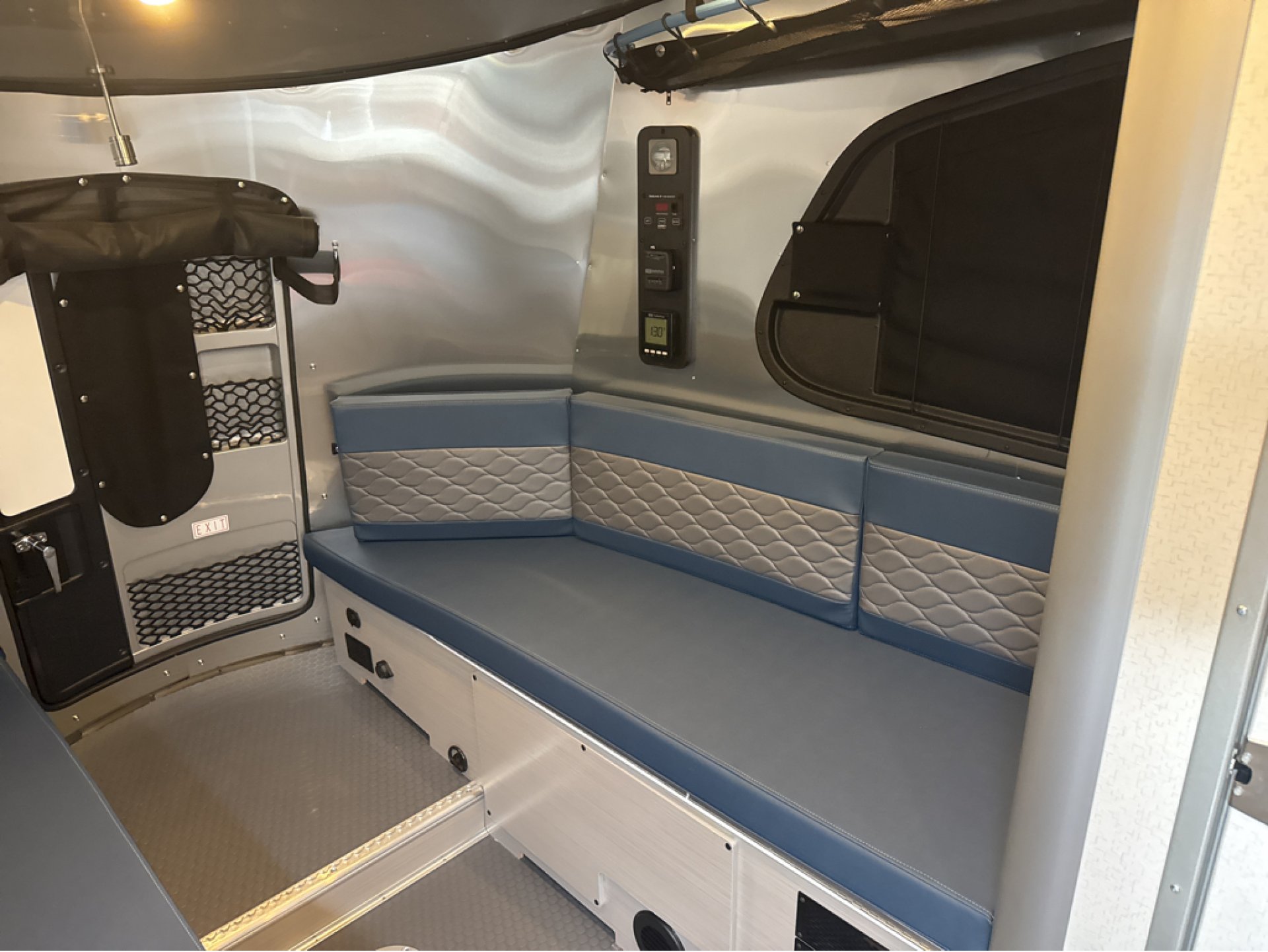

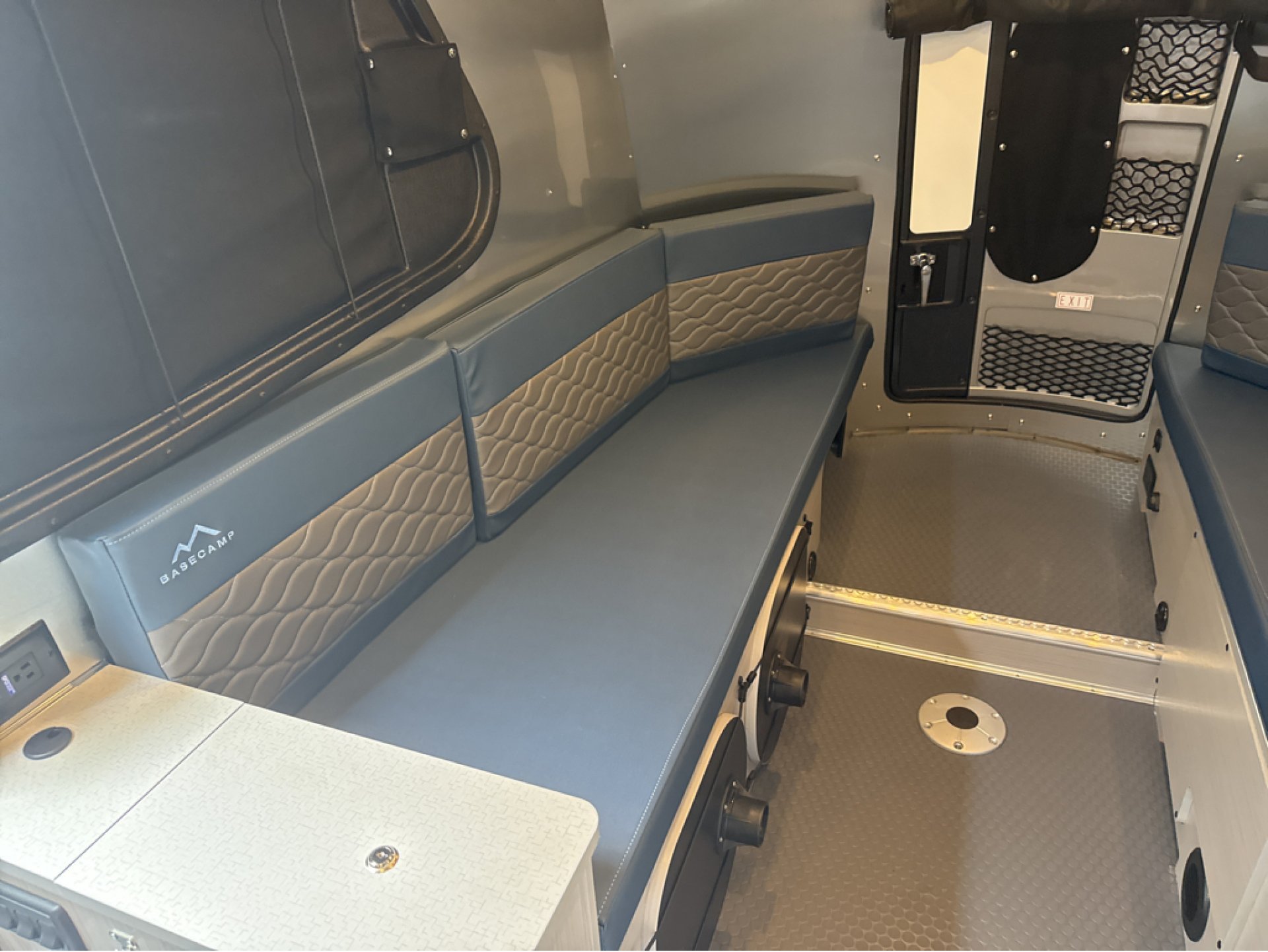

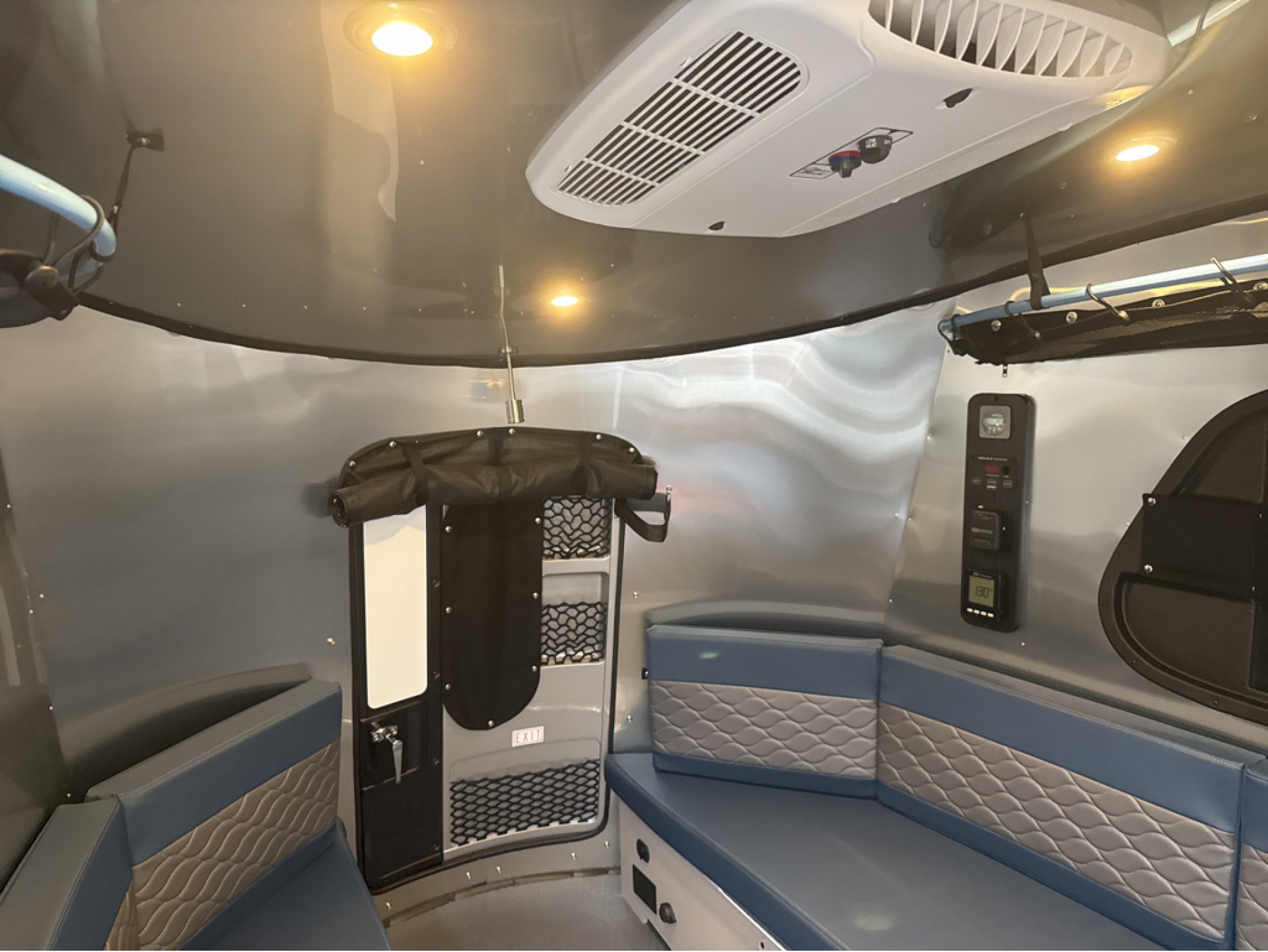

• Convertible Lounge and Sleeping Accommodations: Standard
• 2 Movable Laminate Table Tops with Aluminum Pedestals: Standard

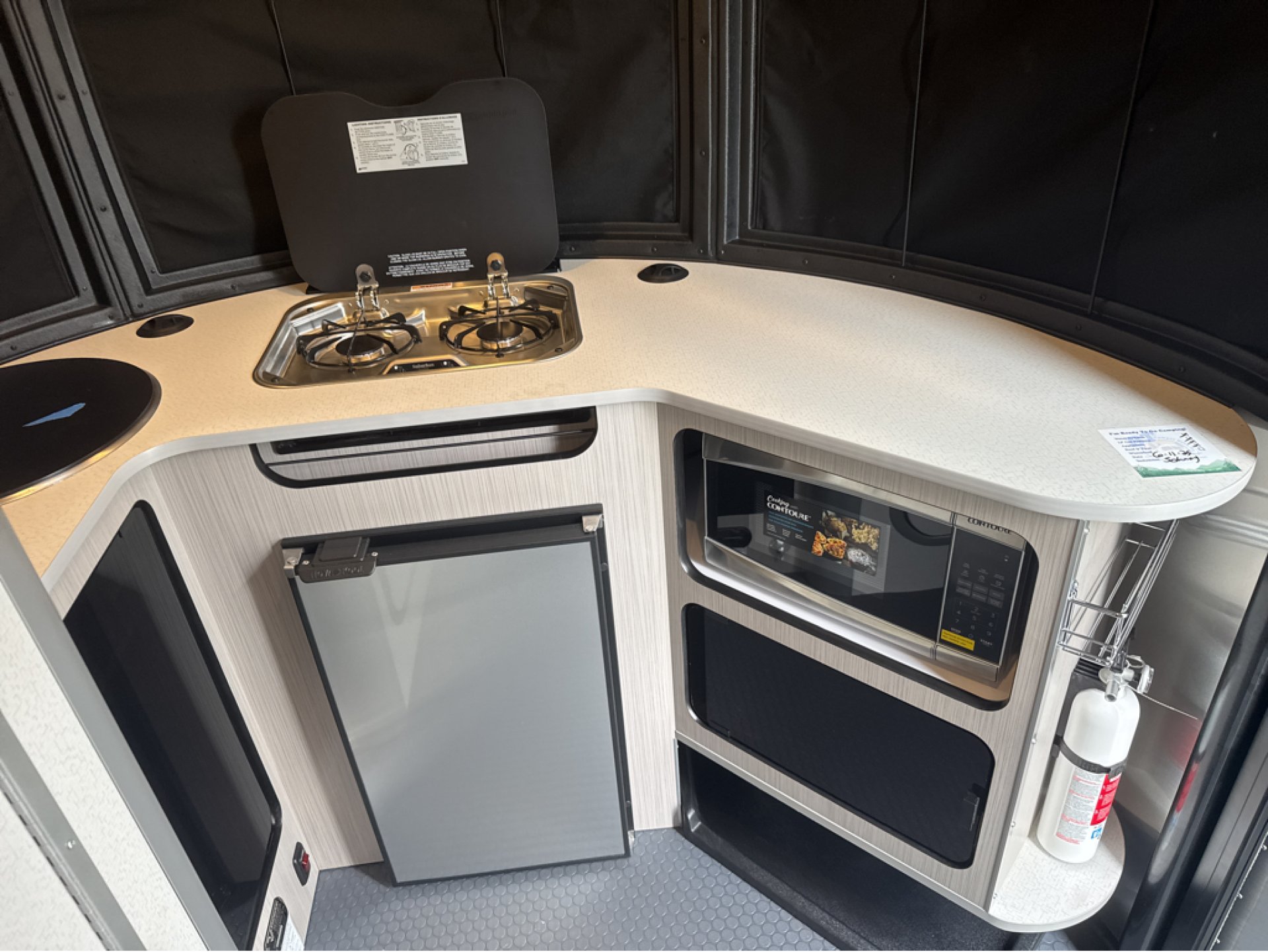

• 2 Burner Stove (LP Gas): Standard

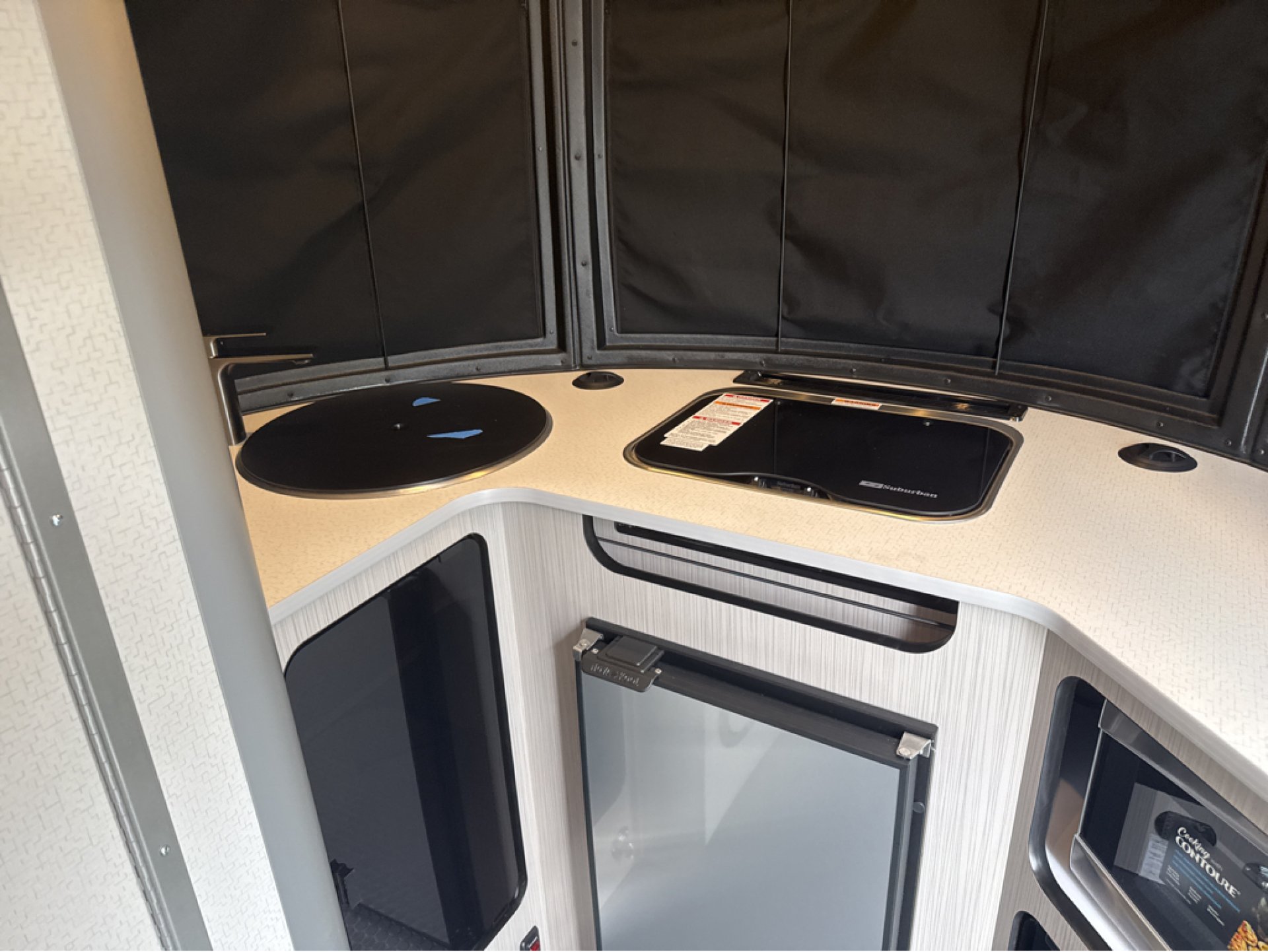

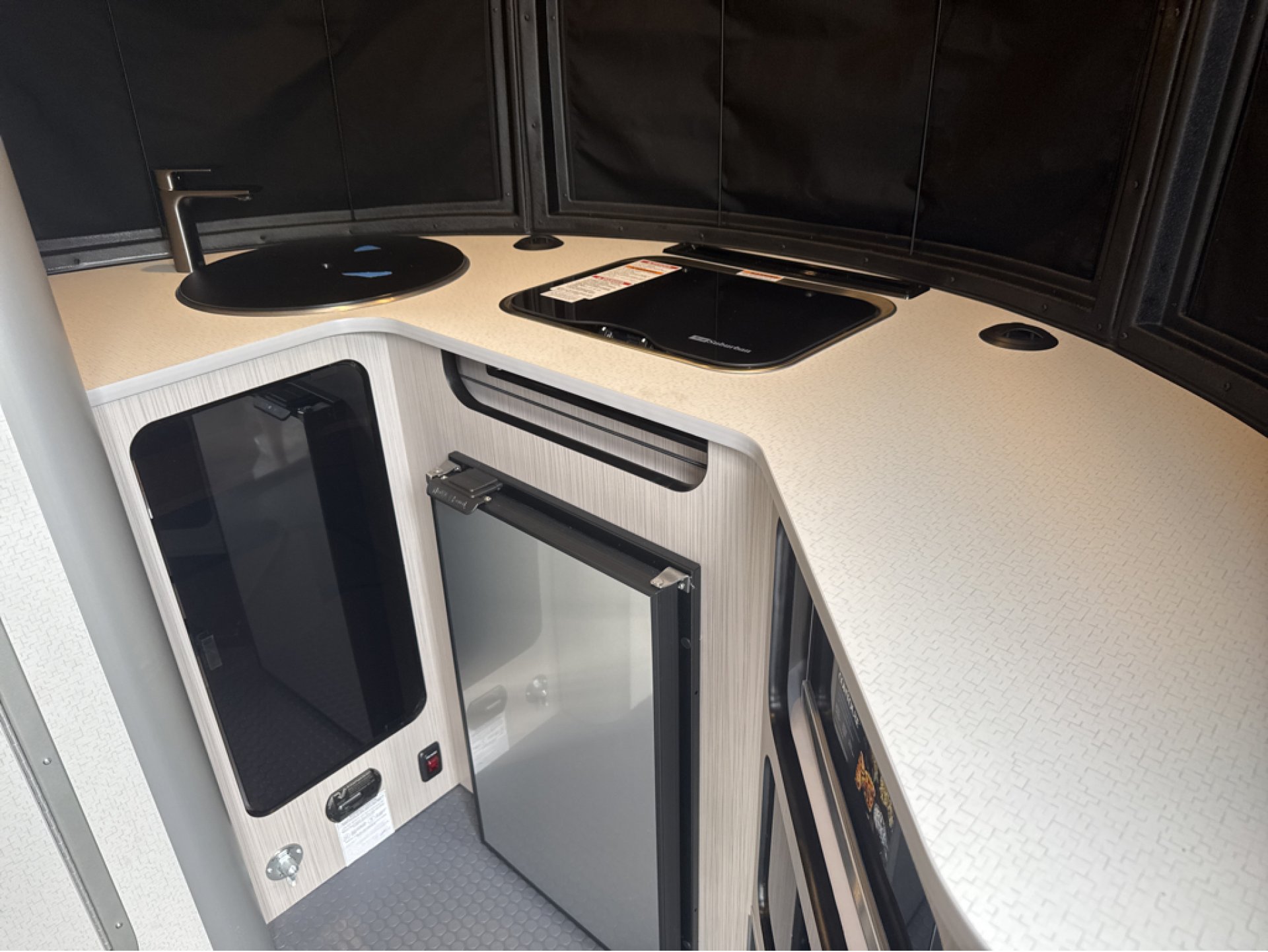

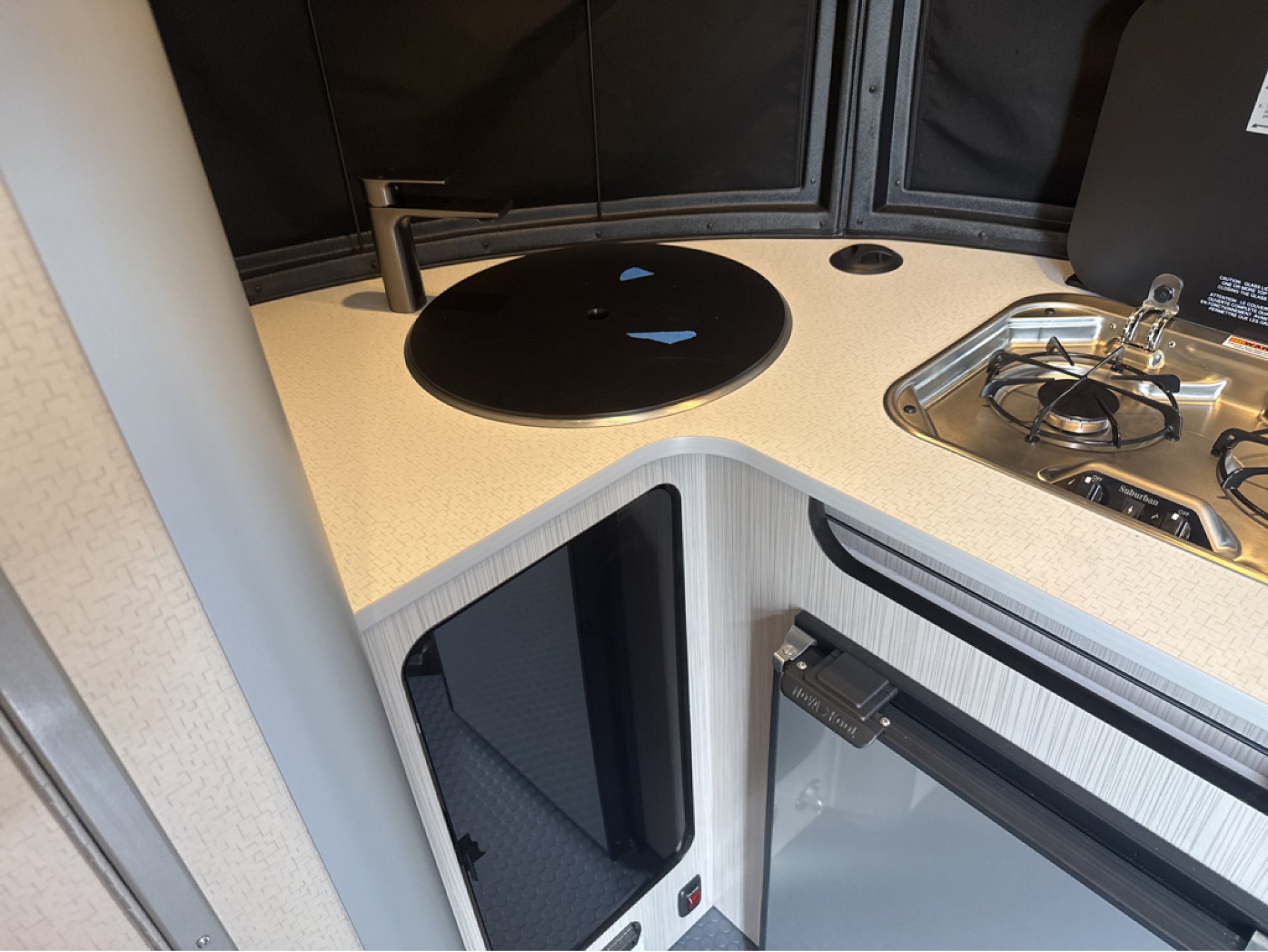

• Stainless Steel Sink with Integrated Cover: Standard
• Spradling Stain Resistant Indoor/Outdoor Cushions: Standard
• Pop Up 110v USB and Standard Outlets: Standard
• Dedicated Table Storage: Standard
• Flatware Organizer: Standard
• 2 Additional Short Aluminum Pedestals for Bed Conversion: Standard
• 12v USB-A and USB-C Ports: Standard
• Blackout Curtain(s): Standard
• Cargo LED Light: Standard
• Lockable Storage with USB: Standard
• Under Bed Storage: Standard
• Basecamp Shower Caddy: Standard

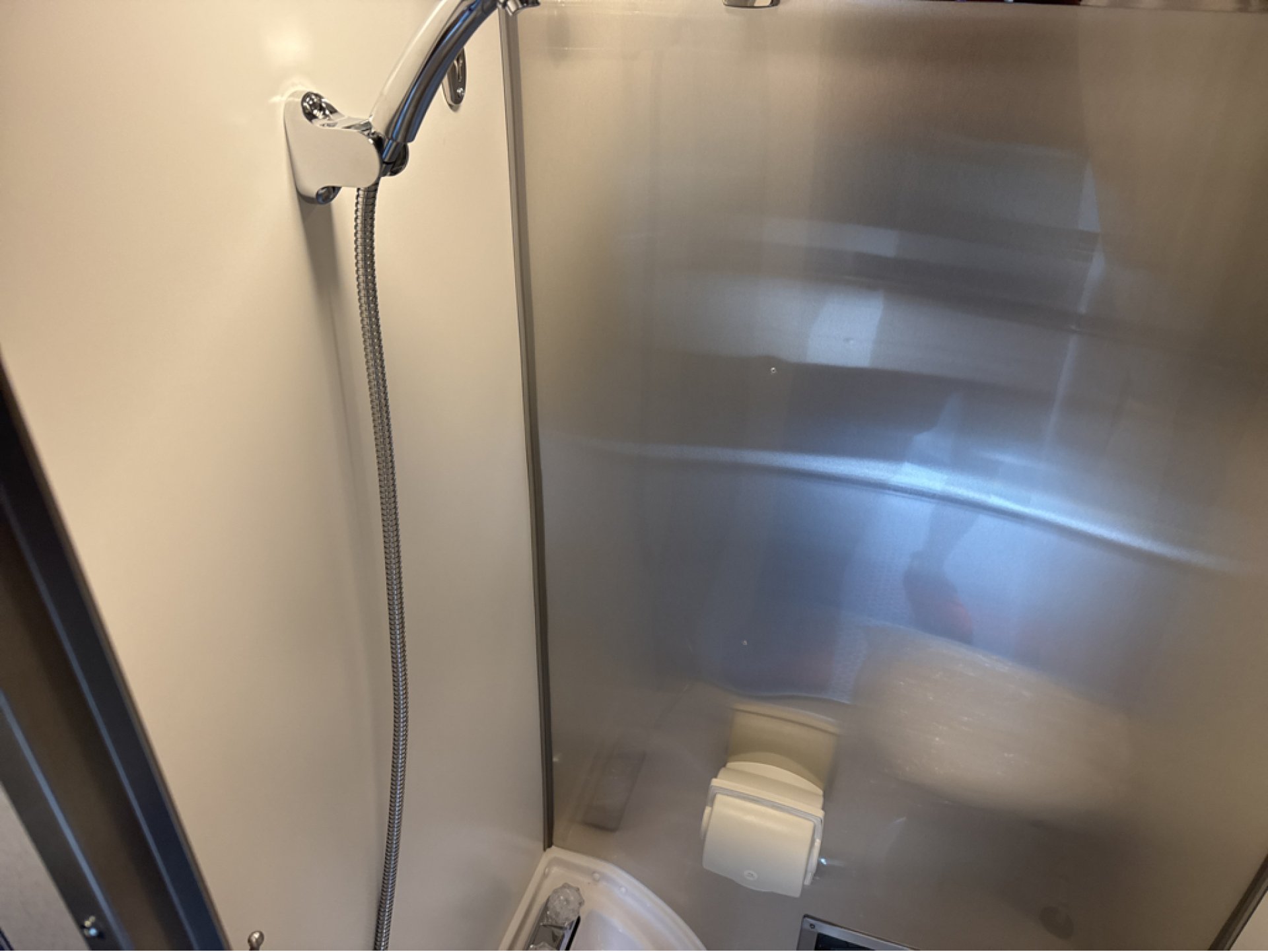

• Removable Hand Held Shower Head with Shut Off: Standard
• Retractable Clothes Line in Shower: Standard
• Roof Vent/Fan: Standard

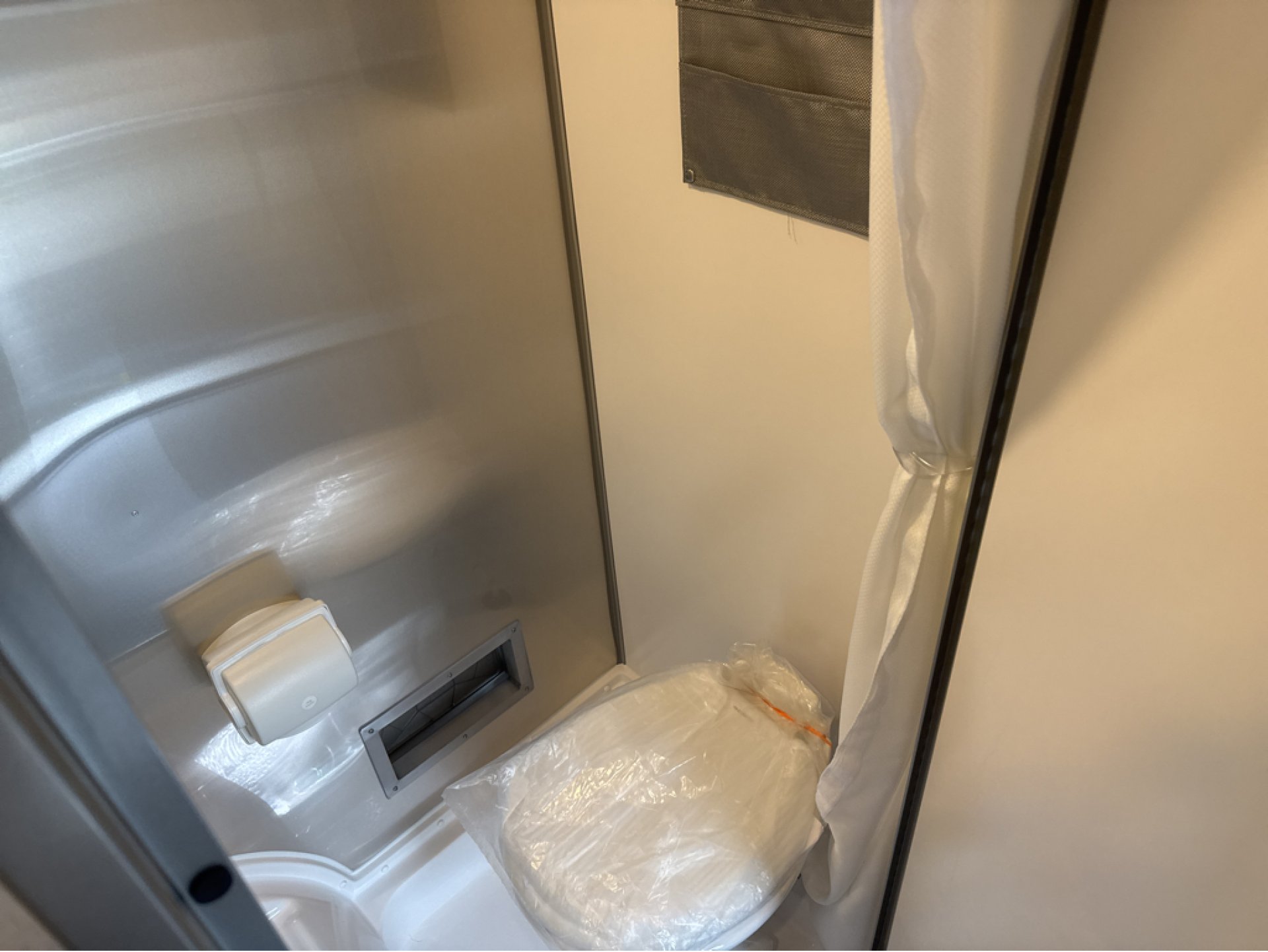

• Toilet: Standard
• Towel Bar/Hooks: Standard
• 1 Year Airstream Club Explorer Membership: Standard
• 3 Year 24/7 Coach-Net® Roadside Assistance: Standard
• 3 Year Airstream Limited Warranty (Transferable): Standard
• Airstream Logo Entrance Mat: Standard
• Built In Winterization Kit: Standard
• Emergency Manual Crank for Powered Hitch Jack: Standard
• Fire Extinguisher: Standard
• LP, Smoke & Carbon Monoxide Detectors: Standard
